Ten Tec Model 238 and 229 Russian Capacitor Mod
This antenna tuner is perhaps the best value of any ever built. Its biggest drawback that I have observed is the problem it has handling high power on 160 meters, which manifests itself as a slowly rising SWR ‘drift’ after the tuner has been set and power applied. This is a result of the small current handling capacity of the four humble 470 pf disc ceramic capacitors that get progressively switched into the circuit. These caps can get profoundly hot under normal high-power operating conditions, and although they never ‘popped’ on me, I was always afraid they would.
The fix was simple in theory: replace the disc ceramic caps with “doorknob” caps, which are available on the Internet. I found a source on e-bay of surplus Soviet military 16 kV/15 Amp RF units with excellent high-temperature specifications. Do a search on e-bay using “capacitors doorknob”, and you’ll see a bunch at great prices.
The schematic above shows the Model 229, however it is virtually identical to the 238 and 238B

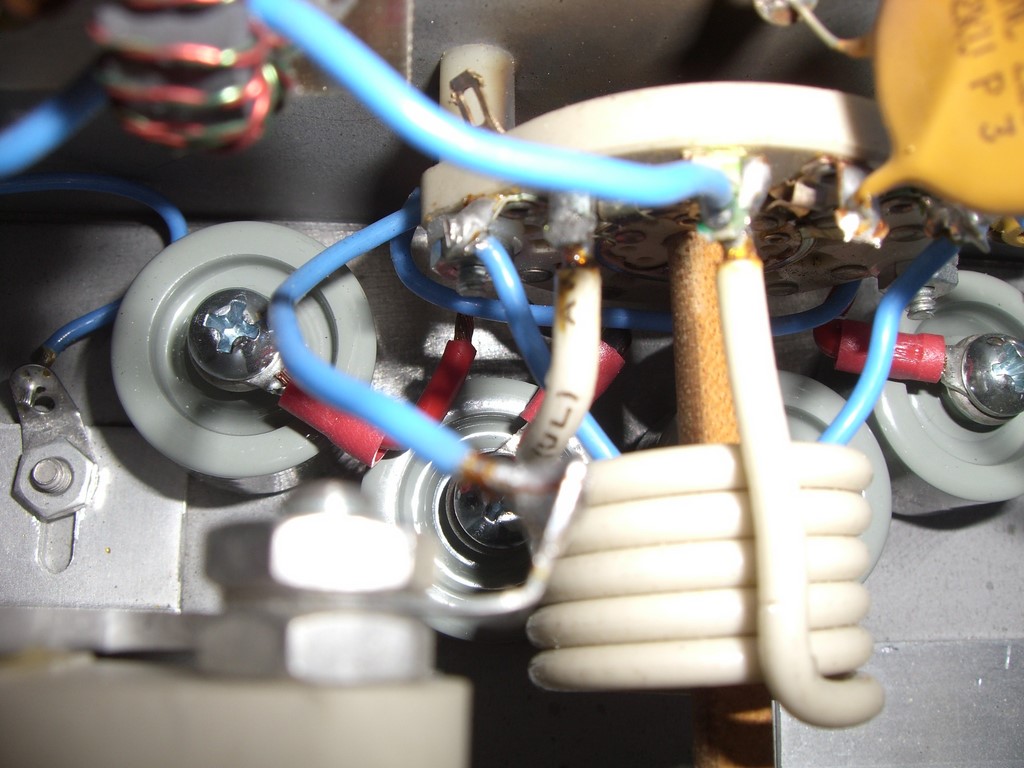

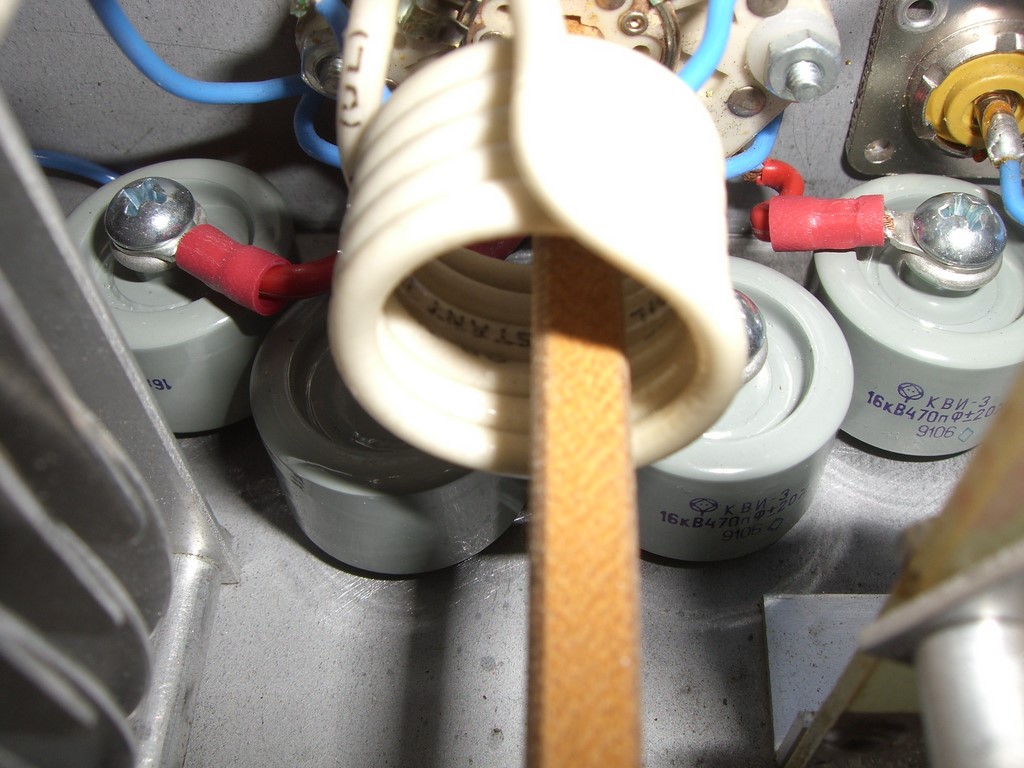

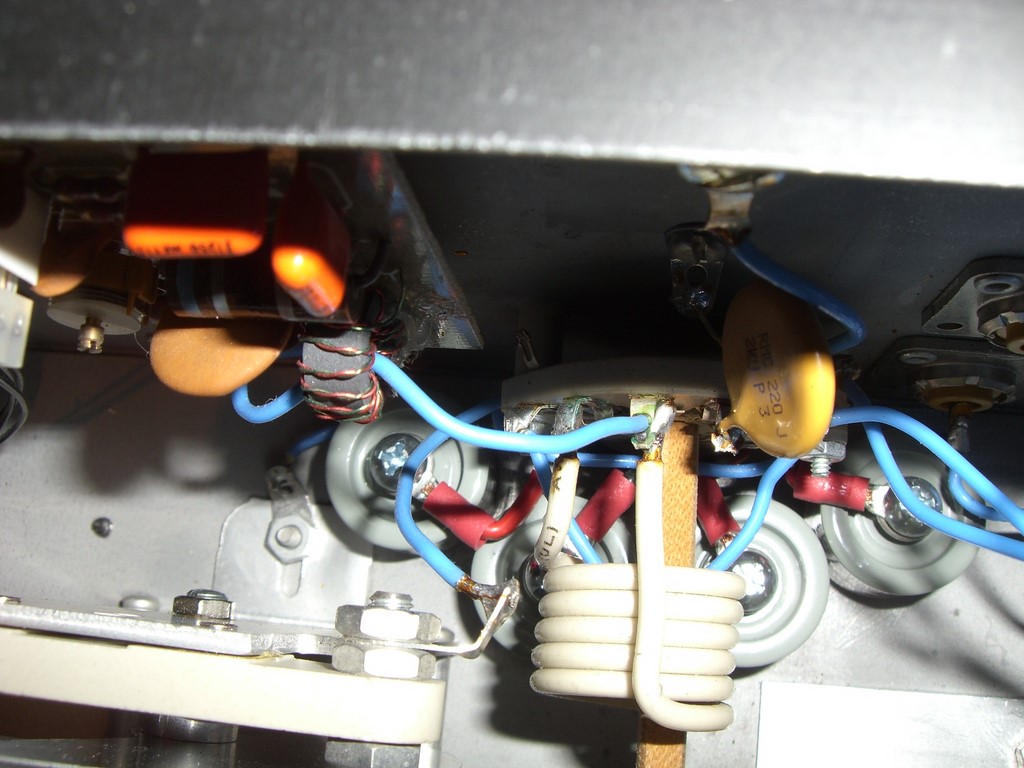

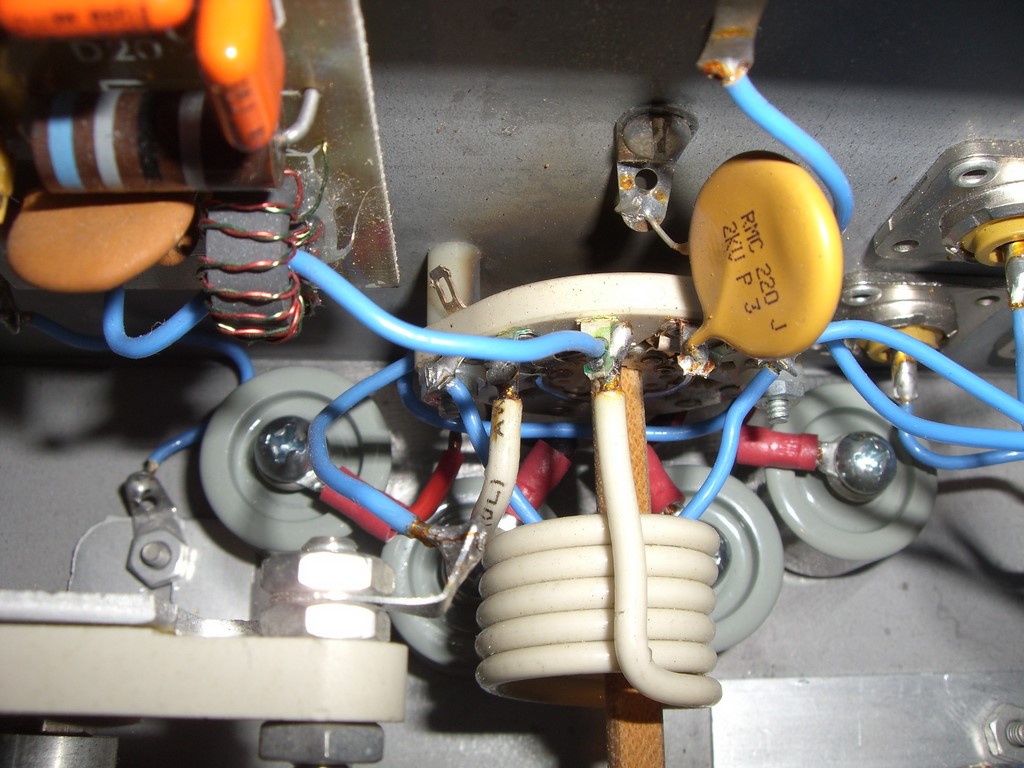

Physically installing the caps proved to be a bit more challenging. There is serious disassembly required to access a place on the chassis deck where they can be located in very close proximity to the main switch. It’s important to keep the leads as short as possible to avoid introducing unwanted inductance in series with the caps. All four caps had their bottoms mounted directly to the chassis with the appropriately-sized hardware, and short leads with spade lugs connect the tops to the switch contacts. Be sure to sand the chassis to get a clean connection. The photos below show the finished job. If you look carefully, you can see where the old caps let out their 'magic smoke' right behind the rotary switch!
The modification works exactly as intended! I can run 1.5 kW, key down (I only try that for a few seconds, though) without seeing any ‘drift’ on the SWR meter. Before I started operating my remote site, my quarter-wave, bent sloper, which had a 2.5:1 SWR without a tuner was able to tune right down to 1:1, and even better, one single setting on 160 meters covered the entire band with < 1.5:1! The tuner also worked fine after the modification on 17 and 12 meters where I used it to tune a Force-12 C4 that really wasn’t designed to work on those bands.
